PRIZM FLUORO MOD
Compact Fluorometer with user-replaceable excitation lamp modules. Great for flexibility.
Compact Fluorometer with user-replaceable excitation lamp modules. Great for flexibility.

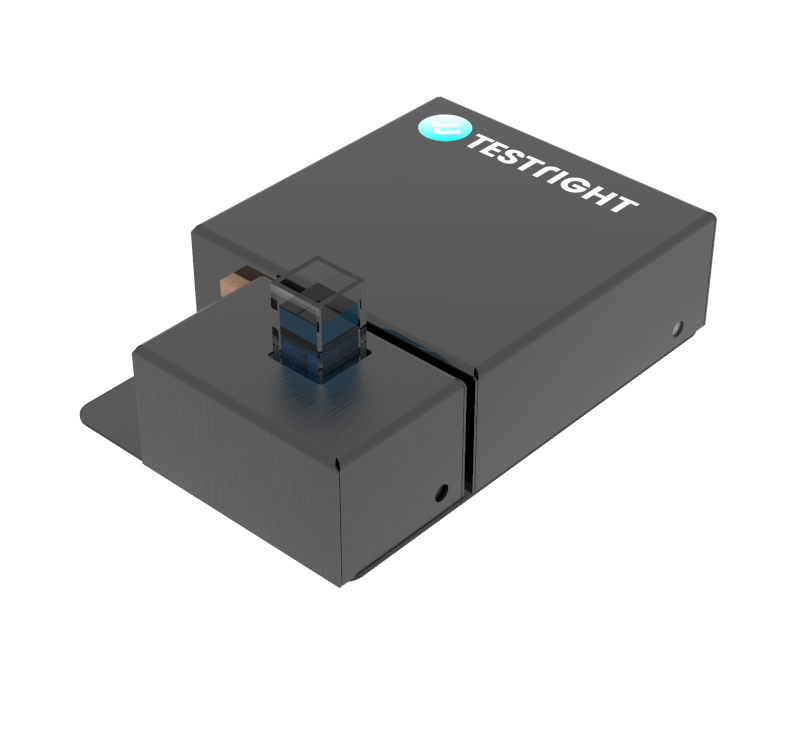

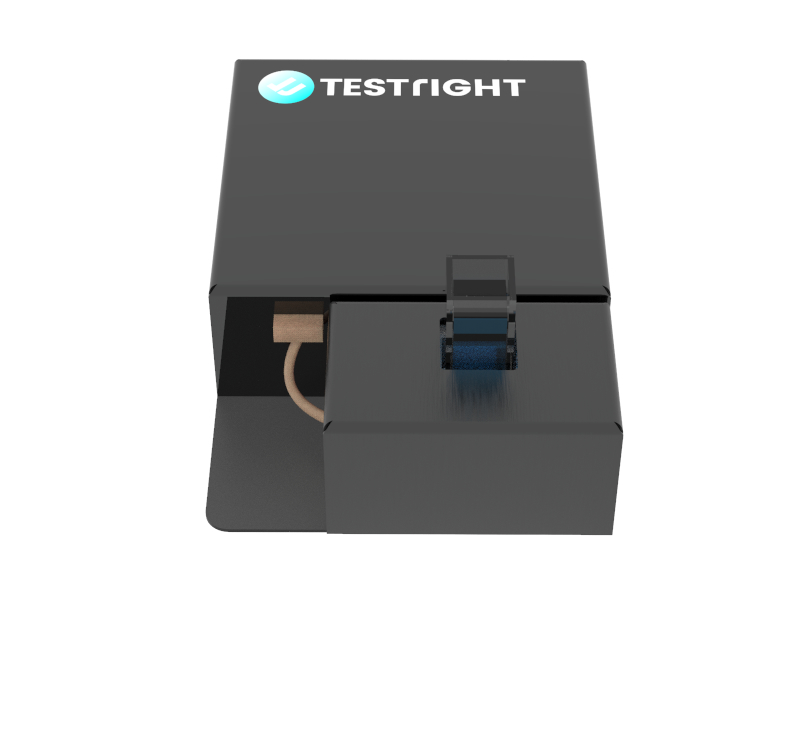

Prizm Fluoro Mod is a compact fluorometer with fully customizable and replaceable excitation lamp modules of wavelengths ranging from 250 to 800 nm for different experimentation requirements.
Special coating CCD detector offers high sensitivity in the UV and NIR region. Users can also opt for a single module at first and purchase separate modules of specific wavelengths, as and when the need arises.
A Linear Silicon CCD array detector coupled with an optimized collection optics gives high optical throughput for low concentration samples.
The spectra is monitored on spot using the software SpectroSmart that is compatible with Windows, Mac and Ubuntu. All you have to do is just connect your device to your laptop with the mini USB 2.0 cable.
| Excitation Wavelength | Discrete sources from 250-800nm |
| Lamp | Detachable Excitation Modules |
| Lamp Life | 50000 hrs |
| Excitation bandwidth (FWHM) | 12nm |
| Emission Wavelength Range | 250-1000nm |
| Reproducibility | +/- 0.2% |
| λ Accuracy | 1nm |
| λ Reproducibility | 1nm |
| Emission Slit Bandwidth | 2-10nm |
| Detector | Linear silicon CCD array |
| Integration time | 0.1 ms - 60 s |
| Interface | Micro USB 2.0 |
| Display | Laptop/Tablet |
| Weight | 500 g |
| Dimensions | 170 (L) x 110 (D) x 40 (H) |
| Collecting Lens | Included |
Each research and application is unique and requires iterations to achieve results. We, at TestRight, completely understand your concerns before placing any order.
