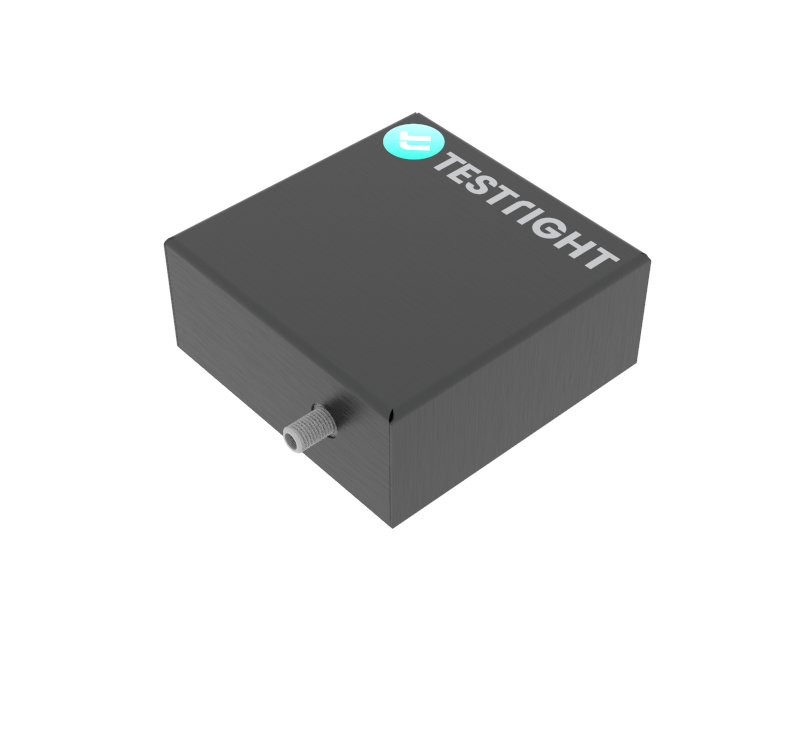

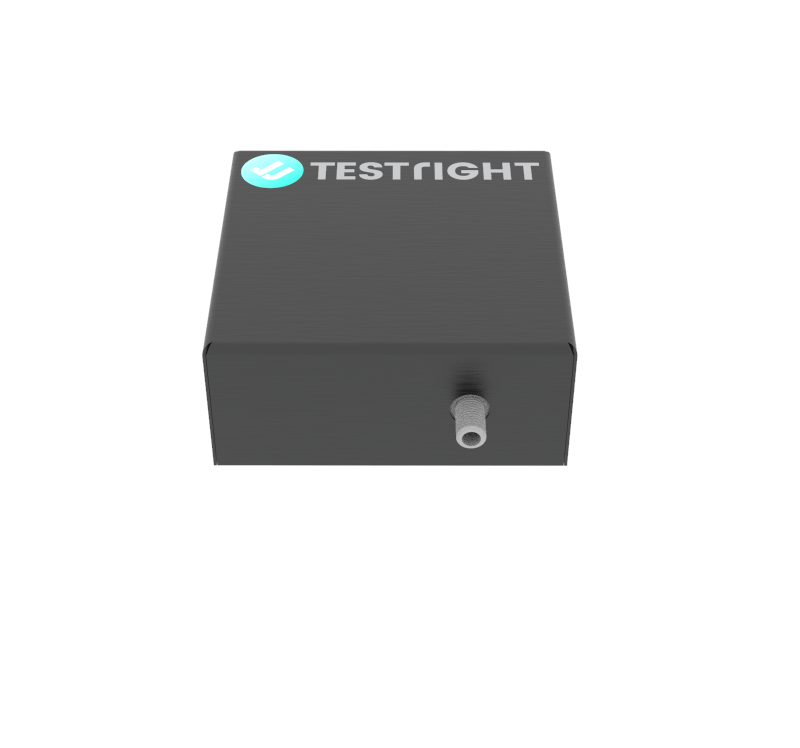

PRIZM SPEC-ECO
Economic Spectrometer optimal for educational purposes.Providing a wavelength range from 360 to 1100 nm.
Economic Spectrometer optimal for educational purposes.Providing a wavelength range from 360 to 1100 nm.
The Prizm Spec Mini is the most affordable spectrometer for general teaching purposes with a wide wavelength ranging from 400 to 1100 nm having a slit width of 50 um.
It comes with 1200 grating lines and an optical resolution of 2 nm with optional collecting lens for high optical throughput and order sorting filters to aid your work.
Furthermore, it has a Linear Silicon CCD array which does a full spectrum scan at one go.
The spectra is monitored on spot using the software SpectroSmart that is compatible with Windows, Mac and Ubuntu. All you have to do is just connect your spectometer to your laptop with the mini USB 2.0 cable
| Wavelength range | 400-1100 nm |
| Slit | 50 µm |
| Grating | 1200 lines |
| Resolution | 2nm |
| Detector | Linear silicon CCD array |
| Detector Lens | Optional |
| Optical design | Czerny-Turner |
| Order sorting filters | Optional |
| Dynamic range | 1300:1 |
| Signal/Noise | 300 |
| Linearity | 99.99 % |
| Integration time | 0.1 ms - 60 s |
| Interface | Micro USB 2.0 |
| Fiber connector | SMA 905 |
| Weight | 90 g |
| Dimensions(mm) | 70 (L) x 70 (D) x 30 (H) |
| Collecting Lens | Optional |
Each research and application is unique and requires iterations to achieve results. We, at TestRight, completely understand your concerns before placing any order.
