PRIZM ABS-VIS-NIR
Scans from 360-1000 nm. Best for general purpose use in low cost setting.
Scans from 360-1000 nm. Best for general purpose use in low cost setting.
Prizm Abs Vis Nir is the most cost-effective solution for your spectrophotometry covering the entire visible and NIR range up to 1000nm with a resolution of 1.9 nm.
It comes pre-configured with a Tungsten Halogen lamp and a linear silicon CCD array for a wide spectral output.
The device can be used in 4 functional modes according to different experimentation requirements. It has a 0-3 absorption range and a wavelength accuracy of 1nm.

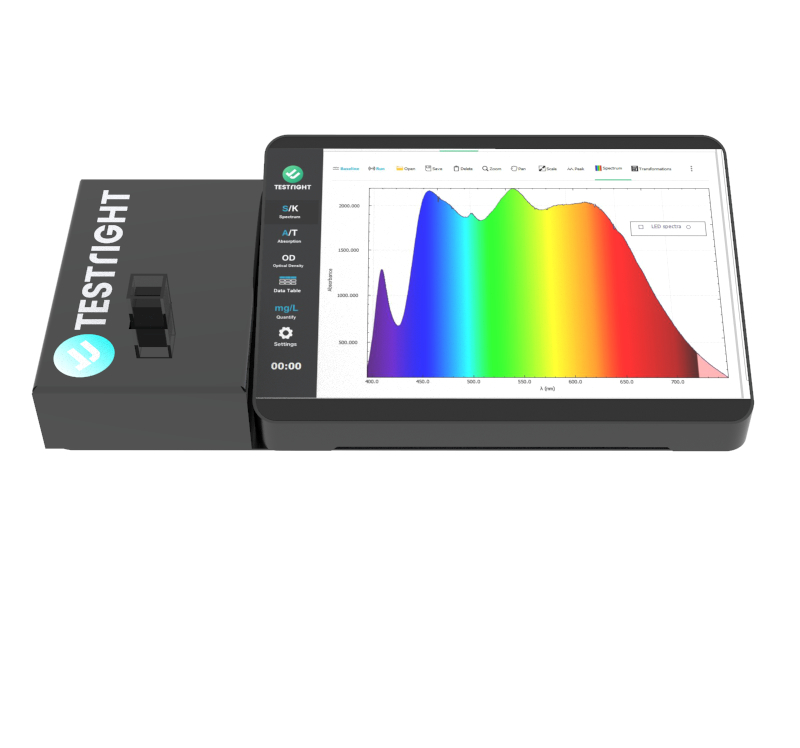

The spectra is monitored on spot using the software SpectroSmart that is compatible with Windows, Mac and Ubuntu. All you have to do is just connect your spectometer to your laptop with the mini USB 2.0 cable
| Wavelength range | 360-1000 nm |
| Resolution | 1.9 nm |
| Absorption Range | 0-3abs |
| Reproducibility | 0.01A |
| Modes | Spectrum, Kinetics, OD, Quantification |
| λ Accuracy | 1nm |
| λ Reproducibility | 1nm |
| Photometric Accuracy | ±0.01A at 0.2A; ±0.05A at 1.0A (at 550nm) |
| Lamp | Tungsten Halogen |
| Beam | Single |
| Detector | Linear silicon CCD array |
| Integration time | 0.1 ms - 60 s |
| Interface | Micro USB 2.0 |
| Display | Laptop/Tablet |
| Baseline Flatness,Noise | ± 0.003A/h, ± 0.002 |
| Stray Light | 0.08% T @ 500nm |
| Readout | %T, A, Concentration |
| Weight | 300 g |
| Dimensions | 150 (L) x 110 (D) x 35 (H) |
| Warranty | 1 year |
