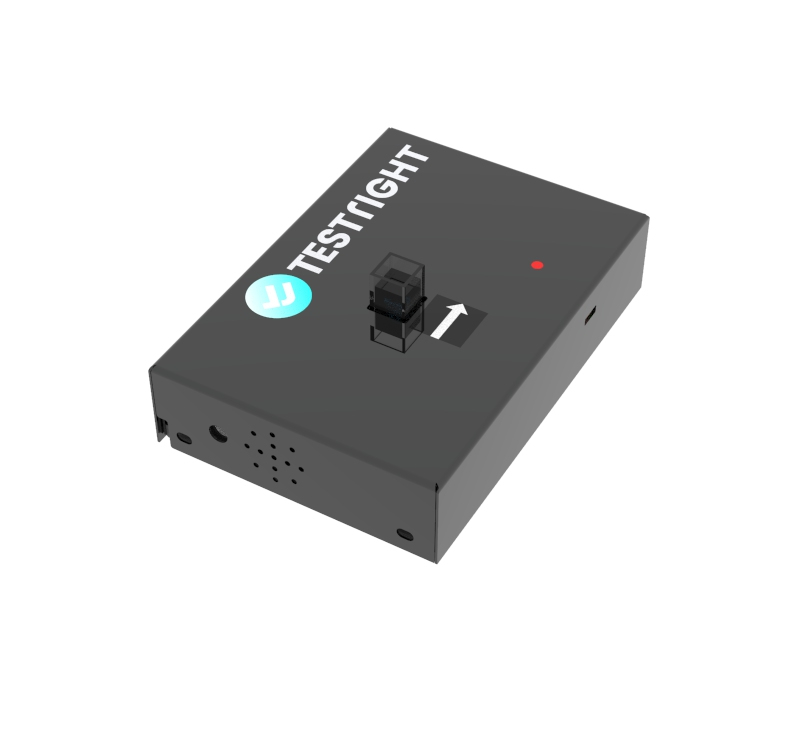

PRIZM ABS-VIS
Low cost visible spectrophotometer with wavelength range 395-750 nm.
Low cost visible spectrophotometer with wavelength range 395-750 nm.
The most affordable and compact visible spectrophotometer with a wavelength range of 395 to 750 nm which makes it ideal for teaching labs and research facilities. It's configured with Linear Silicon CCD array and a resolution of 1.9 nm.
It has a reproducibility of 0.01A and a wavelength accuracy of 1nm. The light source is an LED array that has a life of about 80000hrs.
The software can operate in multiple modes such as spectrum, kinetics, OD and quantification for a wide variety of user applications.

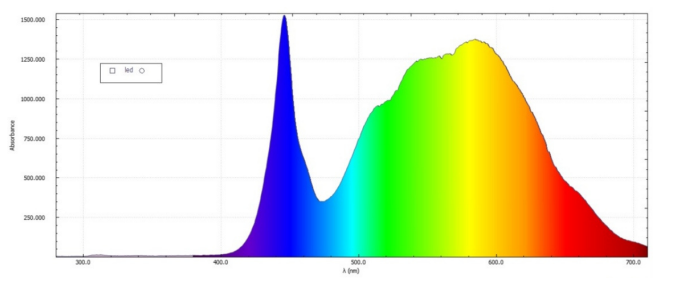

The spectra is monitored on spot using the software SpectroSmart that is compatible with Windows, Mac and Ubuntu. All you have to do is just connect your spectometer to your laptop with the mini USB 2.0 cable
| Wavelength range | 395-750 nm |
| Resolution | 1.9 nm |
| Absorption Range | 0-3abs |
| Reproducibility | 0.01A |
| Modes | Spectrum, Kinetics, OD, Quantification |
| λ Accuracy | ±0.01A at 0.2A; ±0.05A at 1.0A (at 550nm) |
| λ Reproducibility | 1nm |
| Photometric Accuracy | 0.1ms - 60 s |
| Lamp | LED array -80000 hr life |
| Beam | Single |
| Detector | Linear silicon CCD array |
| Integration time | 0.1 ms - 60 s |
| Interface | Micro USB 2.0 |
| Display | Laptop/Tablet |
| Baseline Flatness,Noise | ± 0.003A/h, ± 0.002 |
| Stray Light | 0.08% T @ 500nm |
| Readout | %T, A, Concentration |
| Weight | 200 g |
| Dimensions | 150 (L) x 110 (D) x 35 (H) |
| Warranty | 1 year |
